LloydParameterManager Class Reference

#include <ParameterManager.h>

Inheritance diagram for LloydParameterManager:

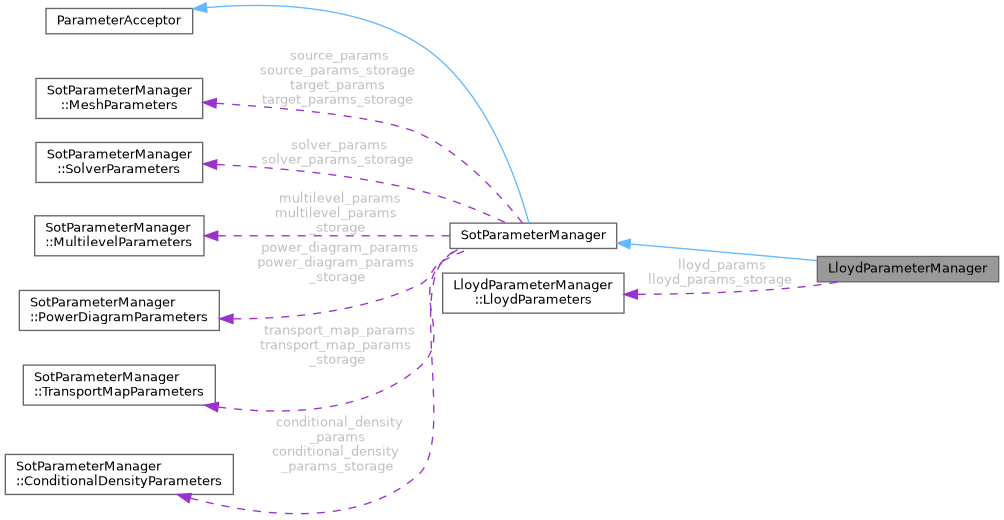

Collaboration diagram for LloydParameterManager:

Classes
struct	LloydParameters

Public Member Functions
	LloydParameterManager (const MPI_Comm &comm)
const LloydParameters &	get_lloyd_params () const
virtual void	print_parameters () const override
Public Member Functions inherited from SotParameterManager
	SotParameterManager (const MPI_Comm &comm)
const MeshParameters &	get_source_params () const
const MeshParameters &	get_target_params () const
const SolverParameters &	get_solver_params () const
const MultilevelParameters &	get_multilevel_params () const
const PowerDiagramParameters &	get_power_diagram_params () const
const TransportMapParameters &	get_transport_map_params () const
const ConditionalDensityParameters &	get_conditional_density_params () const
const MPI_Comm &	get_mpi_communicator () const
const ConditionalOStream &	get_pcout () const
void	print_logo () const

Public Attributes
LloydParameters &	lloyd_params
Public Attributes inherited from SotParameterManager
MeshParameters &	source_params
MeshParameters &	target_params
SolverParameters &	solver_params
MultilevelParameters &	multilevel_params
PowerDiagramParameters &	power_diagram_params
TransportMapParameters &	transport_map_params
ConditionalDensityParameters &	conditional_density_params
std::string &	selected_task
std::string &	io_coding

Private Member Functions
void	print_lloyd_parameters () const
void	print_task_information () const

Private Attributes
LloydParameters	lloyd_params_storage

Additional Inherited Members
Protected Member Functions inherited from SotParameterManager
void	print_mesh_parameters () const
void	print_solver_parameters () const
void	print_multilevel_parameters () const
void	print_power_diagram_parameters () const
void	print_transport_map_parameters () const
void	print_conditional_density_parameters () const
void	print_task_information () const
void	print_section_header (const std::string &section_name) const
Protected Attributes inherited from SotParameterManager
MPI_Comm	mpi_communicator
const unsigned int	n_mpi_processes
const unsigned int	this_mpi_process
ConditionalOStream	pcout

Detailed Description

A class to manage all parameters for the RSOT solver. This class handles parameter declaration, storage, and access for all components of the solver, including mesh generation, solver settings, and multilevel methods. It inherits from ParameterAcceptor to integrate with deal.II's parameter handling system.

Definition at line 190 of file ParameterManager.h.

Constructor & Destructor Documentation

LloydParameterManager()

LloydParameterManager::LloydParameterManager

(

const MPI_Comm &

comm

)

Constructor.

Parameters

comm	MPI communicator for parallel execution

Definition at line 412 of file ParameterManager.cc.

Member Function Documentation

get_lloyd_params()

const LloydParameters & LloydParameterManager::get_lloyd_params ( ) const

inline

Definition at line 207 of file ParameterManager.h.

print_parameters()

void LloydParameterManager::print_parameters ( ) const

overridevirtual

Print all relevant parameters based on the selected task. This provides a comprehensive view of the current parameter settings.

Reimplemented from SotParameterManager.

Definition at line 464 of file ParameterManager.cc.

Here is the call graph for this function:

print_lloyd_parameters()

void LloydParameterManager::print_lloyd_parameters ( ) const

private

Definition at line 455 of file ParameterManager.cc.

Here is the caller graph for this function:

print_task_information()

void LloydParameterManager::print_task_information ( ) const

private

Definition at line 424 of file ParameterManager.cc.

Here is the caller graph for this function:

Member Data Documentation

lloyd_params

LloydParameters& LloydParameterManager::lloyd_params

Definition at line 210 of file ParameterManager.h.

lloyd_params_storage

LloydParameters LloydParameterManager::lloyd_params_storage

private

Definition at line 223 of file ParameterManager.h.

---

The documentation for this class was generated from the following files:

• include/SemiDiscreteOT/utils/ParameterManager.h
• src/utils/ParameterManager.cc
