A solver for semi-discrete optimal transport problems. More...

#include <SotSolver.h>

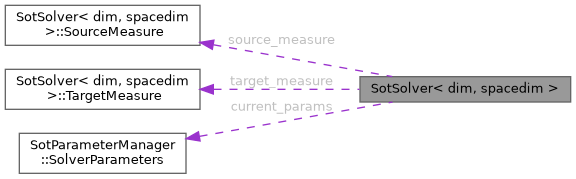

Collaboration diagram for SotSolver< dim, spacedim >:

[legend]

Classes
struct	CopyData
	A struct to hold copy data for parallel assembly. More...

struct	ScratchData
	A struct to hold scratch data for parallel assembly. More...

struct	SourceMeasure
	A struct to hold all the necessary information about the source measure. More...

struct	TargetMeasure
	A struct to hold all the necessary information about the target measure. More...

class	VerboseSolverControl
	A verbose solver control class that prints the progress of the solver. More...

Public Types
using	IndexedPoint = std::pair< Point< spacedim >, std::size_t >

using	RTreeParams = boost::geometry::index::rstar< 8 >

using	RTree = boost::geometry::index::rtree< IndexedPoint, RTreeParams >

Public Member Functions
	SotSolver (const MPI_Comm &comm)
	Constructor for the SotSolver.

void	setup_source (const DoFHandler< dim, spacedim > &dof_handler, const Mapping< dim, spacedim > &mapping, const FiniteElement< dim, spacedim > &fe, const LinearAlgebra::distributed::Vector< double, MemorySpace::Host > &source_density, const unsigned int quadrature_order)
	Sets up the source measure for the solver.

void	setup_target (const std::vector< Point< spacedim > > &target_points, const Vector< double > &target_density)
	Sets up the target measure for the solver.

void	configure (const SotParameterManager::SolverParameters &params)
	Configures the solver with the given parameters.

void	solve (Vector< double > &potential, const SotParameterManager::SolverParameters &params)
	Solves the optimal transport problem.

void	solve (Vector< double > &potential, const SourceMeasure &source, const TargetMeasure &target, const SotParameterManager::SolverParameters &params)
	Alternative solve interface if measures are not set up beforehand.

void	evaluate_weighted_barycenters (const Vector< double > &potentials, std::vector< Point< spacedim > > &barycenters_out, const SotParameterManager::SolverParameters &params)
	Evaluates the weighted barycenters of the power cells.

double	get_last_functional_value () const
	Returns the value of the functional at the last iteration.

unsigned int	get_last_iteration_count () const
	Returns the number of iterations of the last solve.

bool	get_convergence_status () const
	Returns the convergence status of the last solve.

double	get_last_distance_threshold () const
	Returns the distance threshold used in the last solve.

double	get_C_global () const
	Returns the global C value.

void	set_distance_threshold (double threshold)
	Sets the distance threshold for the solver.

double	compute_covering_radius () const
	Computes the covering radius of the target measure with respect to the source domain.

double	compute_geometric_radius_bound (const Vector< double > &potentials, const double epsilon, const double tolerance) const
	Computes the geometric radius bound for truncating quadrature rules.

void	set_distance_function (const std::string &distance_name)
	Sets the distance function to be used by the solver.

void	get_potential_conditioned_density (const DoFHandler< dim, spacedim > &dof_handler, const Mapping< dim, spacedim > &mapping, const Vector< double > &potential, const std::vector< unsigned int > &potential_indices, std::vector< LinearAlgebra::distributed::Vector< double, MemorySpace::Host > > &conditioned_densities)
	Computes the conditional density of the source measure given a potential.

double	evaluate_functional (const Vector< double > &potential, Vector< double > &gradient_out)
	Evaluates the dual functional and its gradient.

void	compute_hessian (const Vector< double > &potential, LAPACKFullMatrix< double > &hessian_out)
	Computes the Hessian matrix of the dual functional.

Public Attributes
std::string	distance_name
	The name of the distance function.

std::function< double(const Point< spacedim > &, const Point< spacedim > &)>	distance_function
	The distance function.

std::function< Vector< double >(const Point< spacedim > &, const Point< spacedim > &)>	distance_function_gradient
	The gradient of the distance function.

std::function< Point< spacedim >(const Point< spacedim > &, const Vector< double > &)>	distance_function_exponential_map
	The exponential map of the distance function.

SourceMeasure	source_measure
	The source measure.

TargetMeasure	target_measure
	The target measure.

Private Member Functions
void	local_assemble (const typename DoFHandler< dim, spacedim >::active_cell_iterator &cell, ScratchData &scratch, CopyData &copy, std::function< void(CopyData &, const Point< spacedim > &, const std::vector< std::size_t > &, const std::vector< double > &, const std::vector< double > &, const double &, const double &, const double &, const double &, const double &)> function_call)

void	compute_distance_threshold () const

std::vector< std::size_t >	find_nearest_target_points (const Point< spacedim > &query_point) const

double	compute_integral_radius_bound (const Vector< double > &potentials, double epsilon, double tolerance, double C_value, double current_functional_val) const

bool	validate_measures () const

void	compute_weighted_barycenters_non_euclidean (const Vector< double > &potentials, std::vector< Vector< double > > &barycenters_gradients_out, std::vector< Point< spacedim > > &barycenters_out)

void	compute_weighted_barycenters_euclidean (const Vector< double > &potentials, std::vector< Point< spacedim > > &barycenters_out)

Private Attributes
MPI_Comm	mpi_communicator

const unsigned int	n_mpi_processes

const unsigned int	this_mpi_process

ConditionalOStream	pcout

std::unique_ptr< SolverControl >	solver_control

double	current_distance_threshold

double	effective_distance_threshold

const Vector< double > *	current_potential

double	current_epsilon

double	global_functional

Vector< double >	gradient

double	covering_radius

double	min_target_density

double	C_global = 0.0

SotParameterManager::SolverParameters	current_params

Vector< double >	barycenters

Vector< double >	barycenters_gradients

std::vector< Point< spacedim > >	barycenters_points

std::vector< Vector< double > >	barycenters_grads

Detailed Description

template<int dim, int spacedim = dim>
class SotSolver< dim, spacedim >

A solver for semi-discrete optimal transport problems.

This class implements a solver for the dual formulation of the regularized semi-discrete optimal transport problem.

Template Parameters

dim	The dimension of the source mesh.
spacedim	The dimension of the space the mesh is embedded in.

Definition at line 55 of file SotSolver.h.

Member Typedef Documentation

◆ IndexedPoint

template<int dim, int spacedim = dim>

using SotSolver< dim, spacedim >::IndexedPoint = std::pair<Point<spacedim>, std::size_t>

Definition at line 59 of file SotSolver.h.

◆ RTreeParams

template<int dim, int spacedim = dim>

using SotSolver< dim, spacedim >::RTreeParams = boost::geometry::index::rstar<8>

Definition at line 60 of file SotSolver.h.

◆ RTree

template<int dim, int spacedim = dim>

using SotSolver< dim, spacedim >::RTree = boost::geometry::index::rtree<IndexedPoint, RTreeParams>

Definition at line 61 of file SotSolver.h.

Constructor & Destructor Documentation

◆ SotSolver()

template<int dim, int spacedim>

SotSolver< dim, spacedim >::SotSolver ( const MPI_Comm & comm )

Constructor for the SotSolver.

Parameters

comm	The MPI communicator.

Definition at line 4 of file SotSolver.cc.

Member Function Documentation

◆ setup_source()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::setup_source	(	const DoFHandler< dim, spacedim > &	dof_handler,
		const Mapping< dim, spacedim > &	mapping,
		const FiniteElement< dim, spacedim > &	fe,
		const LinearAlgebra::distributed::Vector< double, MemorySpace::Host > &	source_density,
		const unsigned int	quadrature_order
	)

Sets up the source measure for the solver.

Parameters

dof_handler	The DoF handler for the source mesh.
mapping	The mapping for the source mesh.
fe	The finite element for the source mesh.
source_density	The density of the source measure.
quadrature_order	The order of the quadrature rule to use for integration.

Definition at line 45 of file SotSolver.cc.

◆ setup_target()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::setup_target	(	const std::vector< Point< spacedim > > &	target_points,
		const Vector< double > &	target_density
	)

Sets up the target measure for the solver.

Parameters

target_points	The points of the discrete target measure.
target_density	The weights of the discrete target measure.

Definition at line 56 of file SotSolver.cc.

◆ configure()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::configure ( const SotParameterManager::SolverParameters & params )

Configures the solver with the given parameters.

Parameters

params The solver parameters.

Definition at line 64 of file SotSolver.cc.

◆ solve() [1/2]

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::solve	(	Vector< double > &	potential,
		const SotParameterManager::SolverParameters &	params
	)

Solves the optimal transport problem.

Parameters

potential	The vector to store the computed optimal transport potential.
params	The solver parameters.

Definition at line 106 of file SotSolver.cc.

◆ solve() [2/2]

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::solve	(	Vector< double > &	potential,
		const SourceMeasure &	source,
		const TargetMeasure &	target,
		const SotParameterManager::SolverParameters &	params
	)

Alternative solve interface if measures are not set up beforehand.

Parameters

potential	The vector to store the computed optimal transport potential.
source	The source measure.
target	The target measure.
params	The solver parameters.

Definition at line 91 of file SotSolver.cc.

◆ evaluate_weighted_barycenters()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::evaluate_weighted_barycenters	(	const Vector< double > &	potentials,
		std::vector< Point< spacedim > > &	barycenters_out,
		const SotParameterManager::SolverParameters &	params
	)

Evaluates the weighted barycenters of the power cells.

Parameters

potentials	The optimal transport potentials.
barycenters_out	The vector to store the computed barycenters.
params	The solver parameters.

Definition at line 586 of file SotSolver.cc.

◆ get_last_functional_value()

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::get_last_functional_value ( ) const

inline

Returns the value of the functional at the last iteration.

Definition at line 240 of file SotSolver.h.

◆ get_last_iteration_count()

template<int dim, int spacedim>

unsigned int SotSolver< dim, spacedim >::get_last_iteration_count ( ) const

Returns the number of iterations of the last solve.

Definition at line 574 of file SotSolver.cc.

◆ get_convergence_status()

template<int dim, int spacedim>

bool SotSolver< dim, spacedim >::get_convergence_status ( ) const

Returns the convergence status of the last solve.

Definition at line 580 of file SotSolver.cc.

◆ get_last_distance_threshold()

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::get_last_distance_threshold ( ) const

inline

Returns the distance threshold used in the last solve.

Definition at line 252 of file SotSolver.h.

◆ get_C_global()

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::get_C_global ( ) const

inline

Returns the global C value.

Definition at line 256 of file SotSolver.h.

◆ set_distance_threshold()

template<int dim, int spacedim = dim>

void SotSolver< dim, spacedim >::set_distance_threshold ( double threshold )

inline

Sets the distance threshold for the solver.

Parameters

threshold The distance threshold.

Definition at line 262 of file SotSolver.h.

◆ compute_covering_radius()

template<int dim, int spacedim>

double SotSolver< dim, spacedim >::compute_covering_radius ( ) const

Computes the covering radius of the target measure with respect to the source domain.

The covering radius R0 is defined as: R0 = max_{x∈Ω} min_{1≤j≤N} ||x - y_j||

which represents the maximum distance any point in the source domain needs to travel to reach the nearest target point.

Returns: The covering radius value

Definition at line 433 of file SotSolver.cc.

◆ compute_geometric_radius_bound()

template<int dim, int spacedim>

double SotSolver< dim, spacedim >::compute_geometric_radius_bound	(	const Vector< double > &	potentials,
		const double	epsilon,
		const double	tolerance
	)		const

Computes the geometric radius bound for truncating quadrature rules.

The geometric radius bound R_geom is defined as: R_geom^2 ≥ R_0^2 + 2Γ(ψ) + 2ε ln(ε/(ν_min * τ * |J_ε(ψ)|))

where:

R_0 is the covering radius
Γ(ψ) = M-m is the potential range (max - min)
ε is the regularization parameter
τ is the tolerance parameter
ν_min is the minimum target density
J_ε(ψ) is the functional value

Parameters

potentials	Current potential values
epsilon	Regularization parameter
tolerance	Desired tolerance for truncation error

Returns: The geometric radius bound

Definition at line 511 of file SotSolver.cc.

◆ set_distance_function()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::set_distance_function ( const std::string & distance_name )

Sets the distance function to be used by the solver.

Parameters

distance_name The name of the distance function.

Definition at line 23 of file SotSolver.cc.

◆ get_potential_conditioned_density()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::get_potential_conditioned_density	(	const DoFHandler< dim, spacedim > &	dof_handler,
		const Mapping< dim, spacedim > &	mapping,
		const Vector< double > &	potential,
		const std::vector< unsigned int > &	potential_indices,
		std::vector< LinearAlgebra::distributed::Vector< double, MemorySpace::Host > > &	conditioned_densities
	)

Computes the conditional density of the source measure given a potential.

Parameters

dof_handler	The DoF handler for the source mesh.
mapping	The mapping for the source mesh.
potential	The optimal transport potential.
potential_indices	The indices of the potential to use.
conditioned_densities	The vector to store the computed conditional densities.

Definition at line 974 of file SotSolver.cc.

◆ evaluate_functional()

template<int dim, int spacedim>

double SotSolver< dim, spacedim >::evaluate_functional	(	const Vector< double > &	potential,
		Vector< double > &	gradient_out
	)

Evaluates the dual functional and its gradient.

Parameters

potential	The potential at which to evaluate the functional.
gradient_out	The vector to store the computed gradient.

Returns: The value of the functional.

Definition at line 219 of file SotSolver.cc.

◆ compute_hessian()

template<int dim, int spacedim = dim>

void SotSolver< dim, spacedim >::compute_hessian	(	const Vector< double > &	potential,
		LAPACKFullMatrix< double > &	hessian_out
	)

Computes the Hessian matrix of the dual functional.

Parameters

potential	The potential at which to compute the Hessian.
hessian_out	The matrix to store the computed Hessian.

◆ local_assemble()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::local_assemble	(	const typename DoFHandler< dim, spacedim >::active_cell_iterator &	cell,
		ScratchData &	scratch,
		CopyData &	copy,
		std::function< void(CopyData &, const Point< spacedim > &, const std::vector< std::size_t > &, const std::vector< double > &, const std::vector< double > &, const double &, const double &, const double &, const double &, const double &)>	function_call
	)

private

Definition at line 770 of file SotSolver.cc.

◆ compute_distance_threshold()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::compute_distance_threshold ( ) const

private

Definition at line 381 of file SotSolver.cc.

◆ find_nearest_target_points()

template<int dim, int spacedim>

std::vector< std::size_t > SotSolver< dim, spacedim >::find_nearest_target_points ( const Point< spacedim > & query_point ) const

private

Definition at line 555 of file SotSolver.cc.

◆ compute_integral_radius_bound()

template<int dim, int spacedim>

double SotSolver< dim, spacedim >::compute_integral_radius_bound	(	const Vector< double > &	potentials,
		double	epsilon,
		double	tolerance,
		double	C_value,
		double	current_functional_val
	)		const

private

Computes the integral radius bound R_int based on the formula: R_int^2 >= 2*M + 2*epsilon*log( (epsilon*C_value) / (tolerance*|J_epsilon(psi)|) ) where M is the max potential value.

Definition at line 477 of file SotSolver.cc.

◆ validate_measures()

template<int dim, int spacedim>

bool SotSolver< dim, spacedim >::validate_measures ( ) const

private

Definition at line 73 of file SotSolver.cc.

◆ compute_weighted_barycenters_non_euclidean()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::compute_weighted_barycenters_non_euclidean	(	const Vector< double > &	potentials,
		std::vector< Vector< double > > &	barycenters_gradients_out,
		std::vector< Point< spacedim > > &	barycenters_out
	)

private

Definition at line 664 of file SotSolver.cc.

◆ compute_weighted_barycenters_euclidean()

template<int dim, int spacedim>

void SotSolver< dim, spacedim >::compute_weighted_barycenters_euclidean	(	const Vector< double > &	potentials,
		std::vector< Point< spacedim > > &	barycenters_out
	)

private

Definition at line 872 of file SotSolver.cc.

Member Data Documentation

◆ distance_name

template<int dim, int spacedim = dim>

std::string SotSolver< dim, spacedim >::distance_name

The name of the distance function.

Definition at line 323 of file SotSolver.h.

◆ distance_function

template<int dim, int spacedim = dim>

std::function<double(const Point<spacedim>&, const Point<spacedim>&)> SotSolver< dim, spacedim >::distance_function

The distance function.

Definition at line 324 of file SotSolver.h.

◆ distance_function_gradient

template<int dim, int spacedim = dim>

std::function<Vector<double>(const Point<spacedim>&, const Point<spacedim>&)> SotSolver< dim, spacedim >::distance_function_gradient

The gradient of the distance function.

Definition at line 325 of file SotSolver.h.

◆ distance_function_exponential_map

template<int dim, int spacedim = dim>

std::function<Point<spacedim>(const Point<spacedim>&, const Vector<double>&)> SotSolver< dim, spacedim >::distance_function_exponential_map

The exponential map of the distance function.

Definition at line 326 of file SotSolver.h.

◆ source_measure

template<int dim, int spacedim = dim>

SourceMeasure SotSolver< dim, spacedim >::source_measure

The source measure.

Definition at line 346 of file SotSolver.h.

◆ target_measure

template<int dim, int spacedim = dim>

TargetMeasure SotSolver< dim, spacedim >::target_measure

The target measure.

Definition at line 347 of file SotSolver.h.

◆ mpi_communicator

template<int dim, int spacedim = dim>

MPI_Comm SotSolver< dim, spacedim >::mpi_communicator

private

Definition at line 495 of file SotSolver.h.

◆ n_mpi_processes

template<int dim, int spacedim = dim>

const unsigned int SotSolver< dim, spacedim >::n_mpi_processes

private

Definition at line 496 of file SotSolver.h.

◆ this_mpi_process

template<int dim, int spacedim = dim>

const unsigned int SotSolver< dim, spacedim >::this_mpi_process

private

Definition at line 497 of file SotSolver.h.

◆ pcout

template<int dim, int spacedim = dim>

ConditionalOStream SotSolver< dim, spacedim >::pcout

private

Definition at line 498 of file SotSolver.h.

◆ solver_control

template<int dim, int spacedim = dim>

std::unique_ptr<SolverControl> SotSolver< dim, spacedim >::solver_control

private

Definition at line 501 of file SotSolver.h.

◆ current_distance_threshold

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::current_distance_threshold

mutableprivate

Definition at line 502 of file SotSolver.h.

◆ effective_distance_threshold

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::effective_distance_threshold

mutableprivate

Definition at line 503 of file SotSolver.h.

◆ current_potential

template<int dim, int spacedim = dim>

const Vector<double>* SotSolver< dim, spacedim >::current_potential

private

Definition at line 504 of file SotSolver.h.

◆ current_epsilon

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::current_epsilon

private

Definition at line 505 of file SotSolver.h.

◆ global_functional

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::global_functional

mutableprivate

Definition at line 506 of file SotSolver.h.

◆ gradient

template<int dim, int spacedim = dim>

Vector<double> SotSolver< dim, spacedim >::gradient

private

Definition at line 507 of file SotSolver.h.

◆ covering_radius

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::covering_radius

private

Definition at line 508 of file SotSolver.h.

◆ min_target_density

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::min_target_density

private

Definition at line 509 of file SotSolver.h.

◆ C_global

template<int dim, int spacedim = dim>

double SotSolver< dim, spacedim >::C_global = 0.0

private

Definition at line 510 of file SotSolver.h.

◆ current_params

template<int dim, int spacedim = dim>

SotParameterManager::SolverParameters SotSolver< dim, spacedim >::current_params

private

Definition at line 513 of file SotSolver.h.

◆ barycenters

template<int dim, int spacedim = dim>

Vector<double> SotSolver< dim, spacedim >::barycenters

private

Definition at line 518 of file SotSolver.h.

◆ barycenters_gradients

template<int dim, int spacedim = dim>

Vector<double> SotSolver< dim, spacedim >::barycenters_gradients

private

Definition at line 519 of file SotSolver.h.

◆ barycenters_points

template<int dim, int spacedim = dim>

std::vector<Point<spacedim> > SotSolver< dim, spacedim >::barycenters_points

private

Definition at line 522 of file SotSolver.h.

◆ barycenters_grads

template<int dim, int spacedim = dim>

std::vector<Vector<double> > SotSolver< dim, spacedim >::barycenters_grads

private

Definition at line 523 of file SotSolver.h.

The documentation for this class was generated from the following files:

include/SemiDiscreteOT/solvers/SotSolver.h
src/solvers/SotSolver.cc

Classes

Public Types

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ IndexedPoint

◆ RTreeParams

◆ RTree

Constructor & Destructor Documentation

◆ SotSolver()

Member Function Documentation

◆ setup_source()

◆ setup_target()

◆ configure()

◆ solve() [1/2]

◆ solve() [2/2]

◆ evaluate_weighted_barycenters()

◆ get_last_functional_value()

◆ get_last_iteration_count()

◆ get_convergence_status()

◆ get_last_distance_threshold()

◆ get_C_global()

◆ set_distance_threshold()

◆ compute_covering_radius()

◆ compute_geometric_radius_bound()

◆ set_distance_function()

◆ get_potential_conditioned_density()

◆ evaluate_functional()

◆ compute_hessian()

◆ local_assemble()

◆ compute_distance_threshold()

◆ find_nearest_target_points()

◆ compute_integral_radius_bound()

◆ validate_measures()

◆ compute_weighted_barycenters_non_euclidean()

◆ compute_weighted_barycenters_euclidean()

Member Data Documentation

◆ distance_name

◆ distance_function

◆ distance_function_gradient

◆ distance_function_exponential_map

◆ source_measure

◆ target_measure

◆ mpi_communicator

◆ n_mpi_processes

◆ this_mpi_process

◆ pcout

◆ solver_control

◆ current_distance_threshold

◆ effective_distance_threshold

◆ current_potential

◆ current_epsilon

◆ global_functional

◆ gradient

◆ covering_radius

◆ min_target_density

◆ C_global

◆ current_params

◆ barycenters

◆ barycenters_gradients

◆ barycenters_points

◆ barycenters_grads
