Utils Namespace Reference

Collection of utility functions for file I/O, mesh handling and data management. More...

Functions
std::string	to_scientific_string (double value, int precision=6)
	Convert a double to a string in scientific notation.
template<typename VectorContainer >
void	write_vector (const VectorContainer &points, const std::string &filepath, const std::string &fileMode="txt")
	Write a vector container to a file in binary or text format.
template<typename VectorContainer >
bool	read_vector (VectorContainer &points, const std::string &filepath, const std::string &fileMode="")
	Read a vector container from a file in binary or text format.
std::vector< std::string >	select_folder (const std::string &base_dir="output", bool allow_all=true)
	List available epsilon folders and allow user selection.
std::vector< std::pair< std::string, std::string > >	get_target_hierarchy_files (const std::string &dir)
	Get target point cloud hierarchy files.
template<int dim, int spacedim>
bool	load_hierarchy_data (const std::string &hierarchy_dir, std::vector< std::vector< std::vector< size_t > > > &child_indices, int specific_level, const MPI_Comm &mpi_communicator, dealii::ConditionalOStream &pcout)
	Load hierarchy data from files.
template<int dim, int spacedim = dim>
bool	write_mesh (const dealii::Triangulation< dim, spacedim > &mesh, const std::string &filepath, const std::vector< std::string > &formats, const std::vector< double > *cell_data=nullptr, const std::string &data_name="cell_data")
	Write mesh to file in specified formats with optional cell data.
template<int dim, int spacedim>
void	interpolate_non_conforming_nearest (const dealii::DoFHandler< dim, spacedim > &source_dh, const dealii::Vector< double > &source_field, const dealii::DoFHandler< dim, spacedim > &target_dh, dealii::LinearAlgebra::distributed::Vector< double > &target_field)
	Interpolate a field from a source mesh to a target mesh using nearest neighbor approach.
template<int dim, int spacedim>
void	interpolate_non_conforming (const dealii::DoFHandler< dim, spacedim > &source_dh, const dealii::Vector< double > &source_field, const dealii::DoFHandler< dim, spacedim > &target_dh, dealii::LinearAlgebra::distributed::Vector< double > &target_field)
	Interpolate a field from a source mesh to a target mesh.
template<int dim, int spacedim = dim>
std::unique_ptr< dealii::FiniteElement< dim, spacedim > >	create_fe_for_mesh (const dealii::Triangulation< dim, spacedim > &triangulation, const unsigned int degree=1)
	Detect cell types in a triangulation and create appropriate finite element.
template<int dim, int spacedim>
std::pair< std::unique_ptr< dealii::FiniteElement< dim, spacedim > >, std::unique_ptr< dealii::Mapping< dim, spacedim > > >	create_fe_and_mapping_for_mesh (const dealii::Triangulation< dim, spacedim > &triangulation, const unsigned int fe_degree=1, const unsigned int mapping_degree=1)
	Create appropriate finite element and mapping for a triangulation.
template<int dim, int spacedim = dim>
std::unique_ptr< dealii::Quadrature< dim > >	create_quadrature_for_mesh (const dealii::Triangulation< dim, spacedim > &triangulation, const unsigned int order=2)
	Create appropriate quadrature for a triangulation based on cell types.
template<int spacedim>
bool	write_points_with_density_vtk (const std::vector< dealii::Point< spacedim > > &points, const std::vector< double > &density, const std::string &filename, const std::string &description="Points with density values", const std::string &density_name="density")
	Write points with associated density to VTK file.
template<int spacedim>
bool	write_points_with_displacement_vtk (const std::vector< dealii::Point< spacedim > > &source_points, const std::vector< dealii::Point< spacedim > > &mapped_points, const std::vector< double > &density, const std::string &filename, const std::string &description="Points with displacement vectors", const std::string &density_name="density")
	Write points with displacement vectors and density to VTK file.
template<int dim, int spacedim = dim>
bool	read_vtk_field (const std::string &filename, dealii::DoFHandler< dim, spacedim > &vtk_dof_handler, dealii::Vector< double > &vtk_field, dealii::Triangulation< dim, spacedim > &vtk_tria, const MPI_Comm &mpi_communicator, dealii::ConditionalOStream &pcout, bool broadcast_field=false, const std::string &field_name="normalized_density")
	Read a scalar field from a VTK file.

Detailed Description

Collection of utility functions for file I/O, mesh handling and data management.

Function Documentation

to_scientific_string()

std::string Utils::to_scientific_string ( double  value, int  precision = 6  )

inline

Convert a double to a string in scientific notation.

Parameters

value	The double value to convert
precision	Number of significant digits (default: 6)

Returns

String representation in scientific notation

Definition at line 42 of file utils.h.

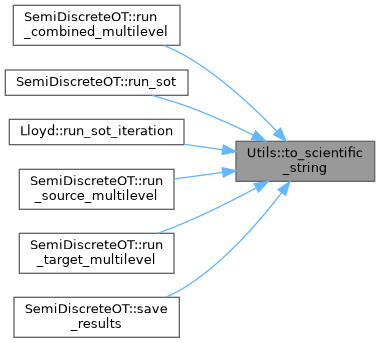

Here is the caller graph for this function:

write_vector()

template<typename VectorContainer >

void Utils::write_vector	(	const VectorContainer &	points,
		const std::string &	filepath,
		const std::string &	fileMode = "txt"
	)

Write a vector container to a file in binary or text format.

Template Parameters

VectorContainer

Type of vector container

Parameters

points	Vector container to write
filepath	Path to output file (without extension)
fileMode	Output format ("txt" or "bin")

Definition at line 56 of file utils.h.

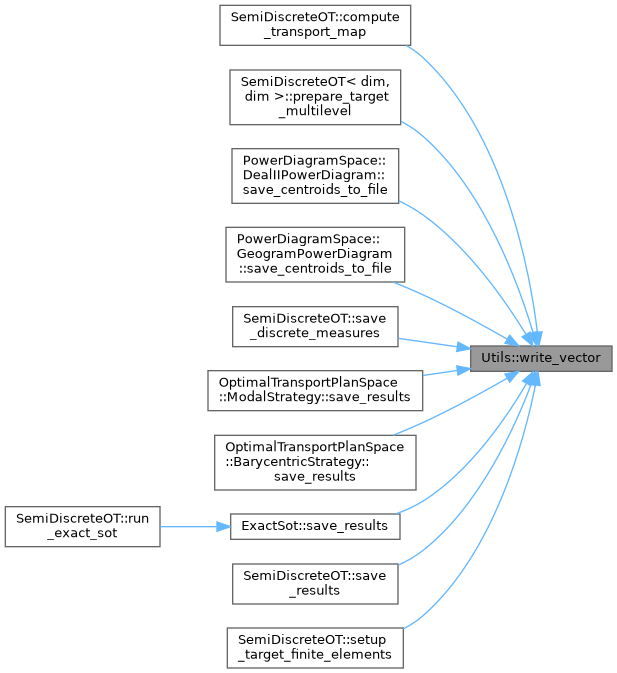

Here is the caller graph for this function:

read_vector()

template<typename VectorContainer >

bool Utils::read_vector	(	VectorContainer &	points,
		const std::string &	filepath,
		const std::string &	fileMode = ""
	)

Read a vector container from a file in binary or text format.

Template Parameters

VectorContainer

Type of vector container

Parameters

points	Vector container to store read data
filepath	Path to input file (with or without extension)
fileMode	Input format ("txt" or "bin"), if empty will be inferred from filepath

Returns

true if read successful, false otherwise

Definition at line 108 of file utils.h.

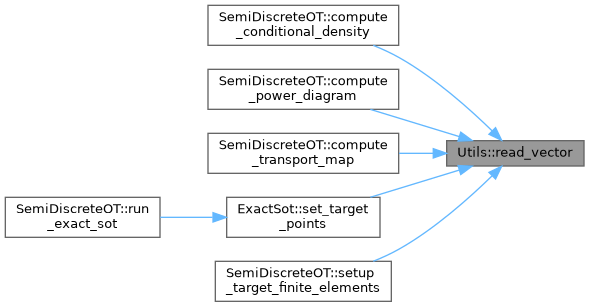

Here is the caller graph for this function:

select_folder()

std::vector< std::string > Utils::select_folder ( const std::string &  base_dir = "output", bool  allow_all = true  )

inline

List available epsilon folders and allow user selection.

Parameters

base_dir	Base directory containing epsilon folders
allow_all	Whether to allow selecting all folders

Returns

Vector of selected folder names

Definition at line 184 of file utils.h.

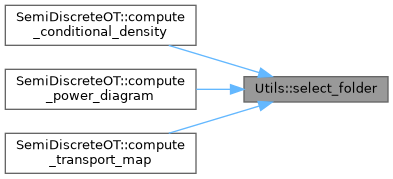

Here is the caller graph for this function:

get_target_hierarchy_files()

std::vector< std::pair< std::string, std::string > > Utils::get_target_hierarchy_files ( const std::string &  dir )

inline

Get target point cloud hierarchy files.

Parameters

dir	Directory containing hierarchy files

Returns

Vector of pairs (points_file, density_file)

Definition at line 238 of file utils.h.

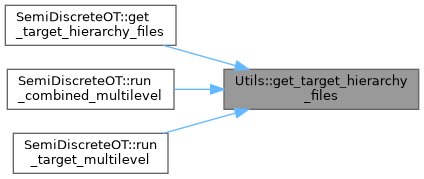

Here is the caller graph for this function:

load_hierarchy_data()

template<int dim, int spacedim>

bool Utils::load_hierarchy_data	(	const std::string &	hierarchy_dir,
		std::vector< std::vector< std::vector< size_t > > > &	child_indices,
		int	specific_level,
		const MPI_Comm &	mpi_communicator,
		dealii::ConditionalOStream &	pcout
	)

Load hierarchy data from files.

Parameters

hierarchy_dir	Directory containing hierarchy files
child_indices	Vector to store parent-child relationships
specific_level	Level to load (-1 for all levels)
mpi_communicator	MPI communicator
pcout	Parallel console output

Returns

true if load successful, false otherwise

Definition at line 287 of file utils.h.

write_mesh()

template<int dim, int spacedim = dim>

bool Utils::write_mesh	(	const dealii::Triangulation< dim, spacedim > &	mesh,
		const std::string &	filepath,
		const std::vector< std::string > &	formats,
		const std::vector< double > *	cell_data = nullptr,
		const std::string &	data_name = "cell_data"
	)

Write mesh to file in specified formats with optional cell data.

Template Parameters

dim	Dimension of the mesh
spacedim	Ambient space dimension

Parameters

mesh	Triangulation to write
filepath	Base path for output files (without extension)
formats	Vector of output formats ("vtk", "msh", "vtu")
cell_data	Optional vector of cell data to include
data_name	Name for the cell data field

Returns

true if write successful, false otherwise

Definition at line 410 of file utils.h.

Here is the caller graph for this function:

interpolate_non_conforming_nearest()

template<int dim, int spacedim>

void Utils::interpolate_non_conforming_nearest	(	const dealii::DoFHandler< dim, spacedim > &	source_dh,
		const dealii::Vector< double > &	source_field,
		const dealii::DoFHandler< dim, spacedim > &	target_dh,
		dealii::LinearAlgebra::distributed::Vector< double > &	target_field
	)

Interpolate a field from a source mesh to a target mesh using nearest neighbor approach.

Template Parameters

dim	Dimension of the mesh
spacedim	Spatial dimension

Parameters

source_dh	Source DoFHandler
source_field	Source field values
target_dh	Target DoFHandler
target_field	Target field values (output)

Definition at line 504 of file utils.h.

Here is the caller graph for this function:

interpolate_non_conforming()

template<int dim, int spacedim>

void Utils::interpolate_non_conforming	(	const dealii::DoFHandler< dim, spacedim > &	source_dh,
		const dealii::Vector< double > &	source_field,
		const dealii::DoFHandler< dim, spacedim > &	target_dh,
		dealii::LinearAlgebra::distributed::Vector< double > &	target_field
	)

Interpolate a field from a source mesh to a target mesh.

Template Parameters

dim	Dimension of the mesh
spacedim	Spatial dimension

Parameters

source_dh	Source DoFHandler
source_field	Source field values
target_dh	Target DoFHandler
target_field	Target field values (output)

Definition at line 625 of file utils.h.

create_fe_for_mesh()

template<int dim, int spacedim = dim>

std::unique_ptr< dealii::FiniteElement< dim, spacedim > > Utils::create_fe_for_mesh	(	const dealii::Triangulation< dim, spacedim > &	triangulation,
		const unsigned int	degree = 1
	)

Detect cell types in a triangulation and create appropriate finite element.

Template Parameters

dim	Dimension of the mesh

Parameters

triangulation	Input triangulation to analyze
degree	Polynomial degree for the finite element (defaults to 1)

Returns

Unique pointer to appropriate finite element

Exceptions

std::runtime_error

if cell type cannot be determined

Definition at line 743 of file utils.h.

Here is the caller graph for this function:

create_fe_and_mapping_for_mesh()

template<int dim, int spacedim>

std::pair< std::unique_ptr< dealii::FiniteElement< dim, spacedim > >, std::unique_ptr< dealii::Mapping< dim, spacedim > > > Utils::create_fe_and_mapping_for_mesh	(	const dealii::Triangulation< dim, spacedim > &	triangulation,
		const unsigned int	fe_degree = 1,
		const unsigned int	mapping_degree = 1
	)

Create appropriate finite element and mapping for a triangulation.

Template Parameters

dim	Dimension of the mesh

Parameters

triangulation	Input triangulation to analyze
fe_degree	Polynomial degree for the finite element (defaults to 1)
mapping_degree	Polynomial degree for the mapping (defaults to 1)

Returns

Pair of unique pointers to appropriate finite element and mapping

Exceptions

std::runtime_error

if cell type cannot be determined

Definition at line 778 of file utils.h.

create_quadrature_for_mesh()

template<int dim, int spacedim = dim>

std::unique_ptr< dealii::Quadrature< dim > > Utils::create_quadrature_for_mesh	(	const dealii::Triangulation< dim, spacedim > &	triangulation,
		const unsigned int	order = 2
	)

Create appropriate quadrature for a triangulation based on cell types.

Template Parameters

dim	Dimension of the mesh

Parameters

triangulation	Input triangulation to analyze
order	Quadrature order (defaults to 2)

Returns

Unique pointer to appropriate quadrature

Exceptions

std::runtime_error

if cell type cannot be determined

Definition at line 818 of file utils.h.

write_points_with_density_vtk()

template<int spacedim>

bool Utils::write_points_with_density_vtk	(	const std::vector< dealii::Point< spacedim > > &	points,
		const std::vector< double > &	density,
		const std::string &	filename,
		const std::string &	description = "Points with density values",
		const std::string &	density_name = "density"
	)

Write points with associated density to VTK file.

Template Parameters

spacedim

Spatial dimension

Parameters

points	Vector of points to write
density	Vector of density values associated with points
filename	Output VTK filename
description	Description for the VTK file header
density_name	Name for the density scalar field

Returns

true if write successful, false otherwise

Definition at line 852 of file utils.h.

write_points_with_displacement_vtk()

template<int spacedim>

bool Utils::write_points_with_displacement_vtk	(	const std::vector< dealii::Point< spacedim > > &	source_points,
		const std::vector< dealii::Point< spacedim > > &	mapped_points,
		const std::vector< double > &	density,
		const std::string &	filename,
		const std::string &	description = "Points with displacement vectors",
		const std::string &	density_name = "density"
	)

Write points with displacement vectors and density to VTK file.

Template Parameters

spacedim

Spatial dimension

Parameters

source_points	Vector of source points
mapped_points	Vector of mapped points (targets)
density	Vector of density values associated with points
filename	Output VTK filename
description	Description for the VTK file header
density_name	Name for the density scalar field

Returns

true if write successful, false otherwise

Definition at line 936 of file utils.h.

read_vtk_field()

template<int dim, int spacedim = dim>

bool Utils::read_vtk_field	(	const std::string &	filename,
		dealii::DoFHandler< dim, spacedim > &	vtk_dof_handler,
		dealii::Vector< double > &	vtk_field,
		dealii::Triangulation< dim, spacedim > &	vtk_tria,
		const MPI_Comm &	mpi_communicator,
		dealii::ConditionalOStream &	pcout,
		bool	broadcast_field = false,
		const std::string &	field_name = "normalized_density"
	)

Read a scalar field from a VTK file.

Parameters

filename	Path to the VTK file
vtk_dof_handler	DoF handler for the VTK mesh
vtk_field	Vector for the VTK field data
vtk_tria	Triangulation for the VTK mesh
mpi_communicator	MPI communicator
pcout	Parallel output stream
broadcast_field	Whether to broadcast the field to all processes (true for source, false for target)
field_name	Name of the field to read from the VTK file

Returns

bool Success status

Definition at line 1039 of file utils.h.

Here is the call graph for this function:
